Place of Origin : Germany
Brand Name : Siemens
Communication interface : Other
Brand : Siemens
Condition : 100% Original Brand
Warranty : 12 Months
Package : Original Packaging
Shipping term : FOB
Payment : T/T
MOQ : 1 Piece
Service : One-stop Service
Quality : 100% Strictly Tested
Application : Automation Industrial
Price : $823.00/cartons 1-9 cartons
MOQ : 1 unit



Supply voltage | ||||
Rated value (DC) | ||||
● 24 V DC | Yes | |||
● 48 V DC | Yes | |||
● 60 V DC | Yes | |||
Mains buffering | ||||
● Mains/voltage failure stored energy time | 20 ms | |||
● Mains buffering according to NAMUR recommendation | Yes | |||
Input current | ||||
Rated value at 24 V DC | 4 A | |||
Rated value at 48 V DC | 2 A | |||
Rated value at 60 V DC | 1.6 A | |||
Inrush current, max. | 18 A; Full width at half maximum 20 ms | |||
output voltage / header | ||||
Type of output voltage | DC | |||
Rated value (DC) | ||||
● 5 V DC | Yes | |||
● 24 V DC | Yes | |||
Output current | ||||
for backplane bus (5 V DC), max. | 10 A; no base load required | |||
for backplane bus (24 V DC), max. | 1 A; idling-proof | |||
Short-circuit protection | Yes | |||
Power | ||||
Active power input, typ. | 95 W | |||
Power loss | ||||
Power loss, typ. | 20 W | |||
Battery | ||||
Backup battery | ||||
● Backup battery (optional) | Yes; 2x lithium AA; 3.6 V / 2.2 Ah | |||
Hardware configuration | ||||
Slots | ||||
● required slots | 2 | |||
Potential separation | ||||
primary/secondary | Yes | |||
Isolation | ||||
Overvoltage category | II | |||
Degree and class of protection | ||||
Equipment protection class | I, with protective conductor | |||
Standards, approvals, certificates | ||||
FM approval | Yes; Ta: 0 °C to 60 °C T4 | |||
CCC | Yes | |||
BIS | Yes | |||
Ambient conditions | ||||
Ambient temperature during operation | ||||
● min. | 0 °C | |||
● max. | 60 °C | |||
connection method | ||||
Design of electrical connection | 3x 1.5 mm², solid or stranded wire with end sleeve, external diameter 3 mm to 9 mm | |||

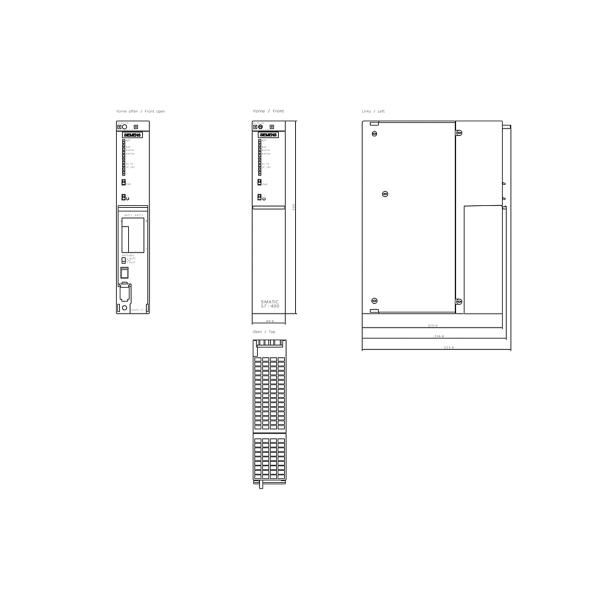

Dimensions | ||||
Width | 50 mm | |||
Height | 290 mm | |||
Depth | 217 mm | |||
Weights | ||||
Weight, approx. | 1 200 g | |||








|
|

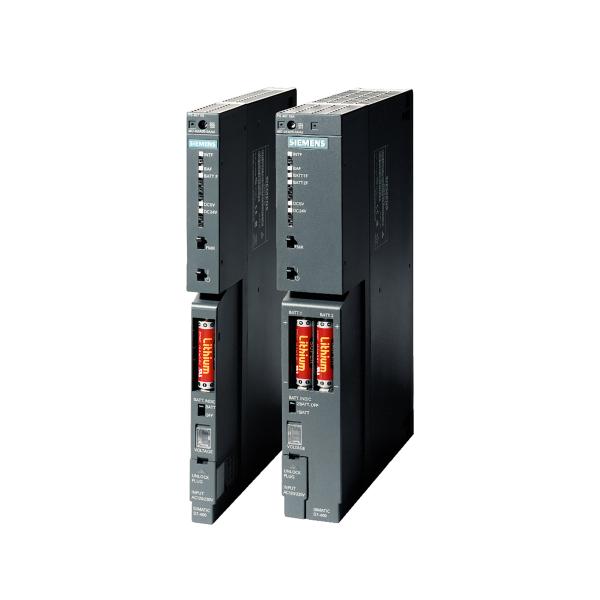

PLC Programmable Controller SIMATIC S7-400 PS 405 10A 6ES7405-0KA02-0AA0 for Siemens Images |
